PHASE ONE iXH CAMERA SOLUTION
For digitising Film, Slides, Glass Plates & Flat Artwork

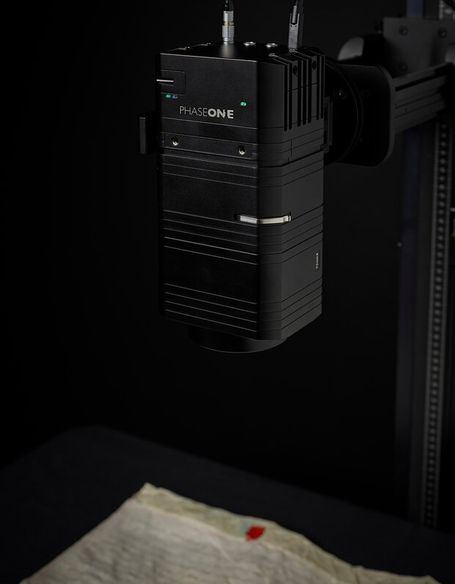

Phase One iXH 150MP Camera
Powerful workflow, ultimate image quality
The iXH Camera System delivers incredible image quality for single shot A0 at 300ppi scanning of flat objects, such as maps and drawings, as well as a wide variety of other formats.
The iXH is built on the Infinity Platform – a powerful processing engine that seamlessly handles large files at high speed, for a long duration, perfectly supporting high volume cultural heritage digitization programs.
Ultimate image quality
Built around a 151-megapixel CMOS backside illuminated (BSI) sensor, the iXH 150MP Camera System delivers the highest available image resolution. The sensor’s dynamic range of 15 f-stops boosts light sensitivity with minimal noise, capturing the smallest details and unmatched color fidelity.
Industrial durability

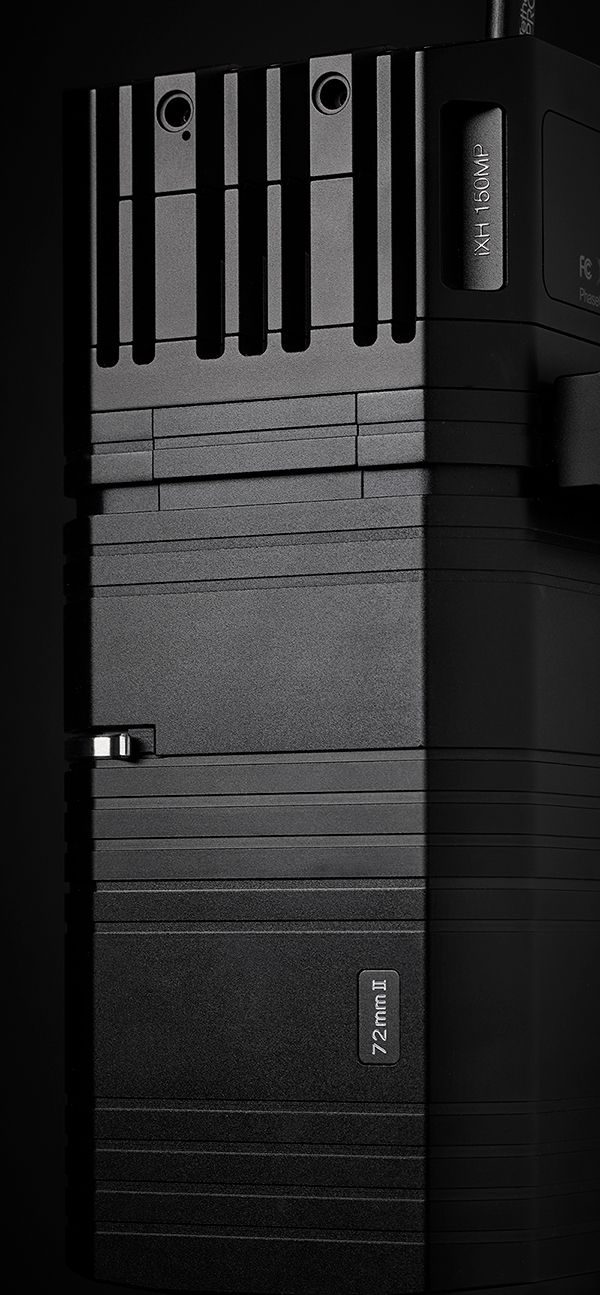

The iXH 150MP sports industrial build quality, made with aerial-grade aluminum and the most durable mechanical and electronic components available today. Integrated heat sink and cooling fins maintain low operating temperatures for noise-free images and consistent results, even during long capturing sessions.
The electromagnetic Reliance Shutter uses innovative technology that ensures efficiency and reliability for even the most demanding digitization programs. The Reliance Shutter is guaranteed for one million actuations, while unlimited captures can be achieved in Electronic Shutter mode.
Fully automated, repeatable workflow
The full integration of hardware with Capture One CH software yields an efficient, professional workflow with precision results. Capture One CH offers complete camera control, reliable performance and expertly crafted RAW conversion algorithms, alongside purpose-built productivity tools such as automatic cropping and alignment tools for documents and books, and an automated workflow for scanning negative film.
PPI Assist accurately measures the distance to the object and enables easy positioning of the camera on any copy stand. The iXH records PPI, field-of-view and magnification, and when used with Autocolumn copy stands and Capture One CH, it is the only solution on the market capable of automated positioning for a specified PPI.
Tethering built for high volume
The iXH Camera System ensures fast reliable data transfer with the USB-C and 10G Ethernet connectivity. The tethering options additionally allow for advanced networking configurations.
Flexible formats and output
The iXH Achromatic and iXH WS (Wide Spectrum) combine the highest resolution and class-leading spectral sensitivity required for specialized scientific imaging applications, research and conservation of manuscripts, maps and drawings.
Capture in color, UV and IR. The iXH 150MP WS camera is the tool of choice for imaging applications such as paintings, medical and forensics. For added workflow and capture flexibility, simply add an IR block filter to convert the Wide Spectrum camera into a regular camera.
To suit the format variation in mixed collections, combine the iXH with a Phase One or Digital Transitions copy stand to quickly switch between large and small originals. Add a Phase One or Digital Transitions film capture stage, and transparent film and glass plates are readily digitized.
The flexibility afforded by the resolution, variable format output and color spectrum ensures that every collection and research project is ideally covered by a Phase One iXH solution.
High quality optics
The iXH supports several high quality lenses that meet the high demands of high volume flat copy digitization work.
The Phase One designed 72mm lens uses groundbreaking UltraRes technology to ensure perfect sharpness at all magnifications – optimized for 150MP and beyond. The motorized floating element increases precision at all apertures and magnification ranges, from 1:70 to 1:3.
The iXH also supports the Schneider Kreuznach 120mm lens. 21mm and 42mm extension tubes are available for close up capturing of film and small objects at higher resolution, and are designed and built with the same accuracy and quality as the camera body and lens.
In combination with the digital lens profiles of Capture One CH, the lenses offer the highest quality in terms of resolution, flatness, sharpness, lack of distortion and color uniformity required for the most demanding reproduction applications.
For more information, sales, support or rental please contact us.
e: info@peartreephoto.com or t: +44 (0)20 7033 7371
Phase One RPS 2300XL Floorstanding Copy Stand
An AutoColumn copy stand capable of meeting the ever-increasing demand for fast, efficient large format digitization. For large, flat and thin objects such as maps, newspapers and drawings, the included metal cover board can be mounted onto the base, allowing for careful and secure positioning with magnets.
The copy stand utilizes a large, super-stable metal base. At 1000x750mm, it supports objects larger than A1. Combined with the Phase One iXH 150MP, this means 300ppi can be easily and conveniently achieved while meeting the strictest FADGI, Metamorfoze and ISO 19264 digitization guidelines.
The new base comes with a set of heavy-duty, lockable castor wheels and an RPS-175 arm extension, providing accurate and stable camera positioning and support. A utility shelf underneath the baseboard provides a convenient solution for placing the controller box and other tools and accessories.
Comes with
2.3m AutoColumn
Camera Arm
RPS-175 Arm Extension
Integrated Levelling Head
100 x 75cm Baseboard
USB-2 Control Box with USB Cable and power Cord
Dovetail 3/8" Camera Mount
Phase One 72mm Mk II iX-RS Lens
A brand new Phase One-designed 72mm lens allows perfect sharpness at all magnifications, using groundbreaking UltraRes technology, optimised for 150MP and beyond. Both this new Phase One 72mm MkII and Schneider Kreuznach 120mm lenses offer the highest available resolution, flatness, sharpness and little to no distortion, to maintain colour uniformity. Two extension tubes – 21mm and 42mm – for the 120mm lens have been designed for close ups at higher resolution, ideal for capturing small objects and 35mm film.
Schneider Kreuznach 120mm iX-RS Lens
integrated flat field optics with 120mm Schneider Kreuznach lens. This compatibility addresses the needs of flat copy work, particularly useful for libraries, archives, and universities. In combination with the digital lens profiles of Capture One CH, the lenses offer the highest quality in terms of resolution, flatness, sharpness, lack of distortion and color uniformity required for the most demanding reproduction applications.
21mm and 42mm extension tubes are available for close up capturing of film and small objects at higher resolution, and are designed and built with the same accuracy and quality as the camera body and lens.
Phase One iX Macro Extension Tube, 42mm
21mm and 42mm extension tubes are available for close up capturing of film and small objects at higher resolution and are designed and built with the same accuracy and quality as the camera body and lens
Phase One iX Macro Extension Tube, 21mm
21mm and 42mm extension tubes are available for close up capturing of film and small objects at higher resolution and are designed and built with the same accuracy and quality as the camera body and lens
Phase One Film Capture Stage
The Phase One Film Capture Stage provides an adjustable, geared support mechanism and is compatible with a range of carriers for glass plate negatives, and most popular film strip and sheet formats. It can be easily adjusted to position the object directly under the camera.
35mm Strip Film Holder
The 35mm Strip film holder has clamps that hold and stretch the film flat.
Phase One 4x5" Film Holder
The 4x5" film/transparency holder has clamps that hold and stretch the film flat.
Phase One 6x6 / 120mm Strip Film Holder
6x6 / 120mm film/transparency holder has clamps that hold and stretch the film flat.
Phase One D8 R+ LED Panel by Akurat
Features extremely high quality LEDs coupled with even diffusion, the D8 R+ LED Panel has a CRI value >98 at 100% brightness. The D8 R+ LED Panel produces flicker free lighting suitable for any high end digitization project where even lighting and color accuracy are paramount.
Phase One RPI-165 LED Insert for Baseboard
Fits the RPS-2300XL 130 x 100cm Base Board
The RPS-165 is a black finished insert fitting to the Baseboard of the RPS-2300xxl setup.
It has an integral LED Panel as its main light source to enable copying of transparancies and glass slides.
This can be inserted into the standard baseboard or as part of a system with the RPS-2300xxl.
The LED Panel has a continuous dimmer control and is opaque for uniform light transmission.
The unit is covered with a glass panel at the same surface level as the Baseboard.
Features:
- Black finish coated Baseboard
- Baseboard can be fitted to the base
- Rounded corners
- Slim LED Panel, no additional depth to Baseboard
- 410 x310 mm nett aperture
- Glass protection cover
- Dimmable LED panel
- Dimmer Control included
